品牌：藍江/LAND

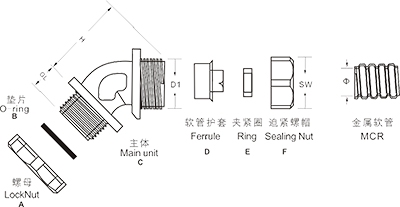

材料：A.C.F為鋅合金，B.E丁腈橡膠，D為鐵皮制成
防護：IP65
溫度：-40°C至100°C
特性：45度設計外形美觀，結構緊密，強度高，抗拉力強
藍江產品型號 | 適配軟管 | 公制螺紋 | 螺紋直徑 | 螺紋長度 | 包裝 |
Product model | Adapt hose | M Thread | Thread diameter | Thread length | quantity |
PN. | φ mm | M | AG mm | GL mm | Pcs/bag |
DWJ45-M16-10 | φ10 | M16×1.5 | 16 | 10 | 50 |
DWJ45-M20-12 | φ12 | M20×1.5 | 20 | 10 | 50 |
DWJ45-M20-15 | φ15 | M20×1.5 | 20 | 12 | 50 |
DWJ45-M20-20 | φ20 | M20×1.5 | 20 | 12 | 50 |
DWJ45-M25-20 | φ20 | M25×1.5 | 25 | 12 | 50 |
DWJ45-M32-25 | φ25 | M32×1.5 | 32 | 15 | 20 |
DWJ45-M40-32 | φ32 | M40×1.5 | 40 | 15 | 10 |
DWJ45-M50-38 | φ38 | M50×1.5 | 50 | 16 | 10 |
DWJ45-M63-51 | φ51 | M63×1.5 | 63 | 16 | 10 |
DWJ45-G3/8-10 | φ10 | G3/8 | 16.65 | 10 | 50 |
DWJ45-G3/8-12 | φ12 | G3/8 | 16.65 | 10 | 50 |
DWJ45-G1/2-15 | φ15 | G1/2 | 20.95 | 12 | 50 |
DWJ45-G3/4-20 | φ20 | G3/4 | 26.44 | 12 | 50 |
DWJ45-G1-25 | φ25 | G1 | 33.24 | 15 | 20 |
DWJ45-G1-1/4-32 | φ32 | G1-1/4 | 41.91 | 15 | 10 |
DWJ45-G1-1/2-38 | φ38 | G1-1/2 | 47.8 | 15 | 10 |
DWJ45-G2-51 | φ51 | G2 | 59.61 | 15 | 10 |
DWJ45-NPT3/8-10 | φ10 | NPT3/8 | 16.65 | 10 | 50 |
DWJ45-NPT3/8-12 | φ12 | NPT3/8 | 16.65 | 10 | 50 |
DWJ45-NPT1/2-15 | φ15 | NPT1/2 | 20.85 | 12 | 50 |
DWJ45-NPT3/4-20 | φ20 | NPT3/4 | 26.3 | 12 | 50 |
DWJ45-NPT1-25 | φ25 | NPT1 | 33.15 | 15 | 20 |
DWJ45-NPT1-1/4-32 | φ32 | NPT1-1/4 | 41.85 | 15 | 10 |
DWJ45-NPT1-1/2-38 | φ38 | NPT1-1/2 | 47.75 | 15 | 10 |
DWJ45-NPT2-51 | φ51 | NPT2 | 59.55 | 15 | 10 |
