產品中心
圓形尼龍悶蓋
品牌：藍江/LAND
材料：尼龍
防水：IP68
環保：ROHS
特性：外形美觀，螺紋精密，用于設備預留孔堵塞密封
產品詳情

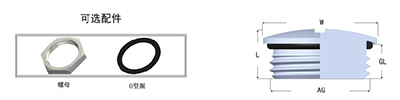

藍江產品型號 | 螺紋規格 | 產品尺寸/Product size | 包裝 | ||
Product model | Thread size | AG | GL | W | packing |
PN. | M/PG/G/NPT | φ mm | φ mm | φ mm | Pcs/bag |
GY-M12 | M12×1.5 | 12 | 8 | 15 | 100 |
GY-M16 | M16×1.5 | 16 | 8 | 19 | 100 |
GY-M18 | M18×1.5 | 18 | 9 | 22 | 100 |
GY-M20 | M20×1.5 | 20 | 9 | 25 | 100 |
GY-M22 | M22×1.5 | 22 | 10 | 27 | 100 |
GY-M25 | M25×1.5 | 25 | 10 | 30 | 50 |
GY-M27 | M27×1.5 | 27 | 10 | 33 | 50 |
GY-M32 | M32×1.5 | 32 | 10 | 38 | 50 |
GY-M40 | M40×1.5 | 40 | 11 | 46 | 20 |
GY-M50 | M50×1.5 | 50 | 13 | 56 | 10 |
GY-M63 | M63×1.5 | 63 | 14 | 68 | 10 |
GY-PG7 | PG7 | 12.5 | 8 | 15 | 100 |
GY-PG9 | PG9 | 15.2 | 8 | 19 | 100 |
GY-PG11 | PG11 | 16.8 | 9 | 22 | 100 |
GY-PG13.5 | PG13.5 | 20.4 | 9 | 25 | 50 |
GY-PG16 | PG16 | 22.5 | 10 | 27 | 50 |
GY-PG21 | PG21 | 28.3 | 10 | 33 | 50 |
GY-PG29 | PG29 | 37 | 11 | 40 | 50 |
GY-PG36 | PG36 | 47 | 13 | 55 | 20 |
GY-PG42 | PG42 | 54 | 13 | 62 | 20 |
GY-PG48 | PG48 | 59.8 | 14 | 68 | 10 |
GY-G1/2 | G1/2 | 20.95 | 9 | 25 | 100 |
GY-G3/4 | G3/4 | 26.44 | 10 | 33 | 50 |
GY-G1 | G1 | 33.24 | 10 | 38 | 50 |
