品牌：藍江/LAND

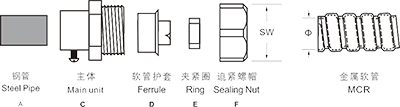

材料：C.F為鋅合金，E丁腈橡膠，D為鐵皮制成
防護：IP65
溫度：-40°C至100°C
特性：外形美觀，結構緊密，相扣接緊，裝配省時便利，抗拉力強
公稱直徑產品尺寸表
藍江產品型號 | 適配軟管 | 厚鋼管 | 外徑/壁厚 | 薄鋼管 | 外徑×壁厚 |
Product model | Adapt hose | Thick pipe | Product size | Thin tube | Product size |
PN. | φ mm | mm | mm | mm | mm |
DKJ-G3/8-12 | φ12 | #12 | 17×2.25 | #15 | 15.87×1.6 |
DKJ-G1/2-15 | φ15 | #15 | 21.25×2.75 | #20 | 19.05×1.6 |
DKJ-G3/4-20 | φ20 | #20 | 26.75×2.75 | #25 | 25.4×1.8 |
DKJ-G1-25 | φ25 | #25 | 33.5×3.35 | #32 | 31.75×1.8 |
DKJ-G1-1/4-32 | φ32 | #32 | 42.25×3.25 | #40 | 38.1×1.8 |
DKJ-G1-1/2-38 | φ38 | #40 | 48×3.35 | #50 | 50.8×1.8 |
DKJ-G2-51 | φ51 | #50 | 60×3.5 | #70 | 63.5×2.5 |
DKJ-G2-1/2-64 | φ64 | #70 | 75.5×3.75 | #80 | 76.2×3.2 |
英制直徑產品尺寸表
藍江產品型號 | 適配軟管 | 厚鋼管 | 外徑/壁厚 | 薄鋼管 | 外徑×壁厚 |
Product model | Adapt hose | Thick pipe | Product size | Thin tube | Product size |
PN. | φ mm | mm | mm | mm | mm |
DKJ-G3/8-12 | 3/8" | 3/8" | 17×2.25 | 1/2" | 15.87×1.6 |
DKJ-G1/2-15 | 1/2" | 1/2" | 21.25×2.75 | 3/4" | 19.05×1.6 |
DKJ-G3/4-20 | 3/4" | 3/4" | 26.75×2.75 | 1" | 25.4×1.8 |
DKJ-G1-25 | 1" | 1" | 33.5×3.35 | 1-1/4" | 31.75×1.8 |
DKJ-G1-1/4-32 | 1-1/4" | 1-1/4" | 42.25×3.25 | 1-1/2" | 38.1×1.8 |
DKJ-G1-1/2-38 | 1-1/2" | 1-1/2" | 48×3.35 | 2" | 50.8×1.8 |
DKJ-G2-51 | 2" | 2" | 60×3.5 | 2-1/2" | 63.5×2.5 |
DKJ-G2-1/2-64 | 2-1/2" | 2-1/2" | 75.5×3.75 | 3" | 76.2×3.2 |
