品牌：藍江/LAND

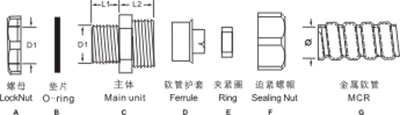

材料：A.C.F為鋅合金，B.E丁腈橡膠，D為鐵皮制成
防護：IP65
溫度：-40°C至100°C
特性：外形美觀，結構緊密，強度高，裝配省時便利，抗拉力強
藍江產品型號 | 適配軟管 | 螺紋尺寸 | 螺紋長度 | 扳手尺寸 | 包裝 |
Product model | Adapt hose | Thread size | Thread length | Wrench Size | quantity |
PN. | φ mm | M/G/NPT | GL mm | cap mm | Pcs/bag |
DPJ-M16-10 | φ10 | M16×1.5 | 9 | 22 | 50 |
DPJ-M20-12 | φ12 | M20×1.5 | 10 | 26 | 50 |
DPJ-M20-15 | φ15 | M20×1.5 | 10 | 30 | 50 |
DPJ-M24-15 | φ15 | M24×1.5 | 11 | 30 | 50 |
DPJ-M25-20 | φ20 | M25×1.5 | 12 | 35 | 50 |
DPJ-M27-20 | φ20 | M27×2.0 | 12 | 35 | 50 |
DPJ-M30-20 | φ20 | M30×2.0 | 12 | 35 | 50 |
DPJ-M32-25 | φ25 | M32×1.5 | 15 | 43 | 50 |
DPJ-M33-25 | φ25 | M33×2.0 | 15 | 43 | 50 |
DPJ-M36-25 | φ25 | M36×2.0 | 15 | 43 | 50 |
DPJ-M36-32 | φ32 | M36×2.0 | 15 | 52 | 20 |
DPJ-M40-32 | φ32 | M40×1.5 | 15 | 52 | 20 |
DPJ-M42-32 | φ32 | M42×2.0 | 15 | 52 | 20 |
DPJ-M48-32 | φ32 | M48×2.0 | 15 | 52 | 20 |
DPJ-M48-38 | φ38 | M48×2.0 | 15 | 60 | 20 |
DPJ-M50-38 | φ38 | M50×1.5 | 18 | 60 | 10 |
DPJ-M60-51 | φ51 | M60×2.0 | 20 | 71 | 10 |
DPJ-M63-51 | φ51 | M63×1.5 | 20 | 71 | 10 |
DPJ-G3/8-10 | φ10 | G3/8 | 7 | 22 | 50 |
DPJ-G3/8-12 | φ12 | G3/8 | 10 | 26 | 50 |
DPJ-G1/2-15 | φ15 | G1/2 | 10 | 30 | 50 |
DPJ-G3/4-20 | φ20 | G3/4 | 12 | 35 | 50 |
DPJ-G1-25 | φ25 | G1 | 14 | 43 | 50 |
DPJ-G1-1/4-32 | φ32 | G1-1/4 | 14 | 52 | 20 |
DPJ-G1-1/2-38 | φ38 | G1-1/2 | 16 | 60 | 10 |
DPJ-G2-51 | φ51 | G2 | 16 | 71 | 10 |
DPJ-NPT1/2-15 | φ15 | NPT1/2 | 10 | 30 | 50 |
DPJ-NPT3/4-20 | φ20 | NPT3/4 | 12 | 35 | 50 |
DPJ-NPT1-25 | φ25 | NPT1 | 14 | 43 | 50 |
