品牌：藍江/LAND
材料：尼龍6
顏色：默認黑色，可選灰白色
阻燃：UL94V-2(可定制V0)
溫度：-40°C-105°C
環保：符合ROHS2.0標準
性能：內螺紋快速連接軟管，抗拉力強，安裝高效便捷

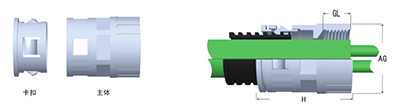

藍江產品型號 | 螺紋規格 | 適配軟管 | 螺紋長度 | 包裝數量 |
Product model | Thread size | Adapt hose | Thread length | quantity |
PN. | Metric | φ mm | GL mm | Pcs/bag |
RKF-M12-AD10.0 | M12×1.5 | AD10 | 10 | 50 |
RKF-M16-AD13.0 | M16×1.5 | AD13 | 13 | 50 |
RKF-M16-AD15.8 | M16×1.5 | AD15.8 | 13 | 50 |
RKF-M20-AD15.8 | M20×1.5 | AD15.8 | 13.5 | 50 |
RKF-M20-AD18.5 | M20×1.5 | AD18.5 | 13.5 | 50 |
RKF-M20-AD21.2 | M20×1.5 | AD21.2 | 13.5 | 50 |
RKF-M22-AD18.5 | M22×1.5 | AD18.5 | 14 | 50 |
RKF-M25-AD21.2 | M25×1.5 | AD21.2 | 15 | 50 |
RKF-M25-AD28.5 | M25×1.5 | AD28.5 | 15 | 50 |
RKF-M30-AD25.0 | M30×1.5 | AD25 | 15 | 50 |
RKF-M30-AD28.5 | M30×1.5 | AD28.5 | 15 | 50 |
RKF-M32-AD34.5 | M32×1.5 | AD34.5 | 17 | 20 |
RKF-M40-AD42.5 | M40×1.5 | AD42.5 | 17 | 10 |
RKF-M50-AD54.5 | M50×1.5 | AD54.5 | 17 | 10 |
RKF-M63-AD54.5 | M63×1.5 | AD54.5 | 20 | 10 |
RKF-G1/4-AD10.0 | G1/4 | AD10 | 10 | 50 |
RKF-G3/8-AD13.0 | G3/8 | AD13.0 | 13 | 50 |
RKF-G3/8-AD15.8 | G3/8 | AD15.8 | 13 | 50 |
RKF-G1/2-AD15.8 | G1/2 | AD15.8 | 13.5 | 50 |
RKF-G1/2-AD18.5 | G1/2 | AD18.5 | 13.5 | 50 |
RKF-G1/2-AD21.2 | G1/2 | AD21.2 | 13.5 | 50 |
RKF-G3/4-AD21.2 | G3/4 | AD21.2 | 15 | 50 |
RKF-G3/4-AD25.0 | G3/4 | AD25.0 | 15 | 50 |
RKF-G3/4-AD28.5 | G3/4 | AD28.5 | 15 | 50 |
RKF-G1-AD28.5 | G1 | AD28.5 | 15 | 50 |
RKF-G1-AD34.5 | G1 | AD34.5 | 17 | 20 |
RKF-G1-1/4-AD34.5 | G1-1/4 | AD34.5 | 17 | 20 |
RKF-G1-1/4-AD42.5 | G1-1/4 | AD42.5 | 17 | 10 |
RKF-G1-1/2-AD42.5 | G1-1/2 | AD42.5 | 28.5 | 10 |
RKF-G1-1/2-AD54.5 | G1-1/2 | AD54.5 | 28.5 | 10 |
RKF-G2-AD54.5 | G2 | AD54.5 | 28.5 | 10 |
